The collar did not break. A year or two in, an Educator system that used to be consistent starts feeling vague. The cause is almost always one of four wear parts rather than the electronics: worn contact points, a stretched strap, a tired cell, or a receiver that sits badly because nothing has been checked since the day it arrived. This kit is those four parts plus a bag of cheese, because refreshing the hardware is a good excuse to re-run the low level sessions. The rest of what we assemble lives on the bundle guides hub.
Diagnose before you order
Work out which symptom you actually have, because the fixes are different. Shrinking run time between charges points at the cell. Inconsistent response at the same level points at contact, which means point length or strap tension. Lost range is its own thing. Educator says a battery that no longer holds a full charge is the usual cause of shrinking run time, and that reduced range is more often a low charge or a damaged antenna than a failed cell. Our guide to troubleshooting common e-collar issues walks through the same checks in order.
Points, pads, strap and cell

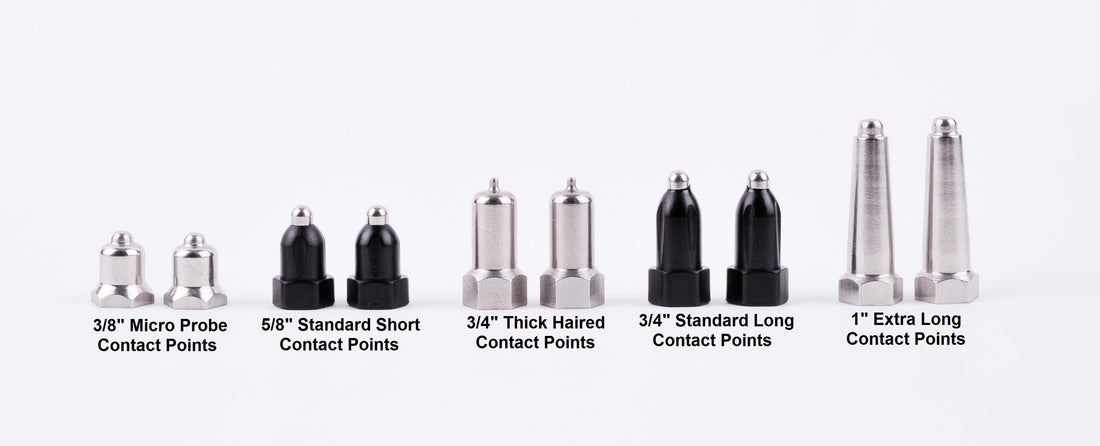

Contact points are the first thing to replace and the thing most people have never replaced at all. Educator sells thirteen types and sorts them by coat against its own 302 breed chart. Micro 3/8 inch covers small dogs and RX-070 receivers at 43 breeds; Short 1/2 to 5/8 inch covers smooth single coats at 96. Long 3/4 inch takes medium and dense coats at 47 breeds, Thick Hair 3/4 inch takes double and woolly coats at 103, and MAX 1 inch is for corded coats, only 13 breeds. Educator also states that 163 of those 302 breeds need something longer than the point that shipped in the box. Look your dog up in the breed contact point finder rather than guessing from memory.
Comfort pads sit between the points and the skin. Educator describes them as spreading contact across a wider area, improving comfort and consistency. Educator sells them by receiver model rather than by dog: RX-090, 120 and 150 for standard receivers, RX-050 and 070 for the micro units, TS for the large ones, and a separate fitting for the Barkless BP-504. The Flex Wing versions are sized by neck instead, Regular for 12 to 17 inches and Large above that. Read the model number printed on your own receiver before you choose.
A fresh strap is the cheapest fix on this page and the one nobody thinks of. Educator says straps stretch and the holes wear, and calls a loose strap one of the most common hidden causes of inconsistent contact. If your receiver has started rotating around the neck through the day, replace the strap before you buy anything electronic.
Batteries come last in the order of suspicion and are sorted by unit. Educator lists 300mAh cells for the BL-100, BP-504, RX-090, RX-070 and RX-1000 receivers, 400mAh for 300 and 400 series transmitters and receivers, 720mAh for the large transmitters and 900 series transmitters, and a CR2032 for the FT-030 finger trainer. Match the number printed on the unit, not the year you bought it.
The cheese is the reason to bother. Freeze-Dried Cheddar Cheese Bites are one ingredient, cheddar, freeze-dried in small batches in Malvern, Pennsylvania, and they ship from us in one 8 ounce bag. Freeze-drying makes them crunchy rather than greasy, so they live in a pouch without leaving a mark. Dairy, so skip them if your dog does not get on with dairy, and pick something else from the freeze-dried dog treats range or the wider treats hub.
A refresh order is a small order and it still splits in two. E-Collar Technologies items are sold and shipped by E-Collar Technologies through Shopify Collective, not made or shipped by Sniff and Shift. Points, pads, strap and cell all come from Educator on one tracking number. The cheese is ours and ships from Malvern, usually arriving first, which is mildly irritating when the part you were actually waiting on is a set of contact points.
What is deliberately missing
A new transmitter. The whole argument of this page is that a system which feels tired rarely needs replacing, and Educator makes the same point about batteries being far cheaper than a new system that only wants fresh power.
No charger in the required list either, though it is here as an add on. A frayed cable can imitate a dead cell exactly, so if the unit charges intermittently, start with the cable. The rest of the catalog is filterable on Explore.
The refresh, in one evening
Strip the collar first. Points off, pads off, strap out, and look at the tips of the old points against a new set. If the tips are rounded or shorter than the replacements, that is your answer and you can stop there.
Fit the new strap next and set the length properly: two fingers under the strap, high on the neck, points touching skin. Then charge everything fully and leave it a day before you draw any conclusions about run time, because a cell that has been sitting flat reports badly.
Last, re-run the level test from scratch. Do not assume the old number transfers. Longer points reaching skin through a coat can change what the dog perceives, so start low and work up the same way you did on day one.
What it replaces
A replacement system. People who reach this stage usually price a new collar, decide it is expensive, and carry on with a vague one for another season. Points, pads, a strap and a cell come to a fraction of that, and the only part you are likely to buy again within a year is the points.
Questions
How do I know if my points are worn?
Compare them to a new set of the same type side by side. Educator's guidance is to replace before they wear down to the base, and the difference is visible once you have something to measure against.
Long 3/4 inch or Thick Hair 3/4 inch?
Educator says these are the same length, and that the Thick Hair point has a broader body shaped to part a woolly undercoat while the Standard Long is slimmer for coats that are dense but not double. If your dog blows coat twice a year, take the Thick Hair.
My range has dropped. Is that the battery?
Probably not. Educator says lost range is more often a low charge or a damaged antenna than a failed cell, so check the charge and look at the antenna before you order a replacement battery.
